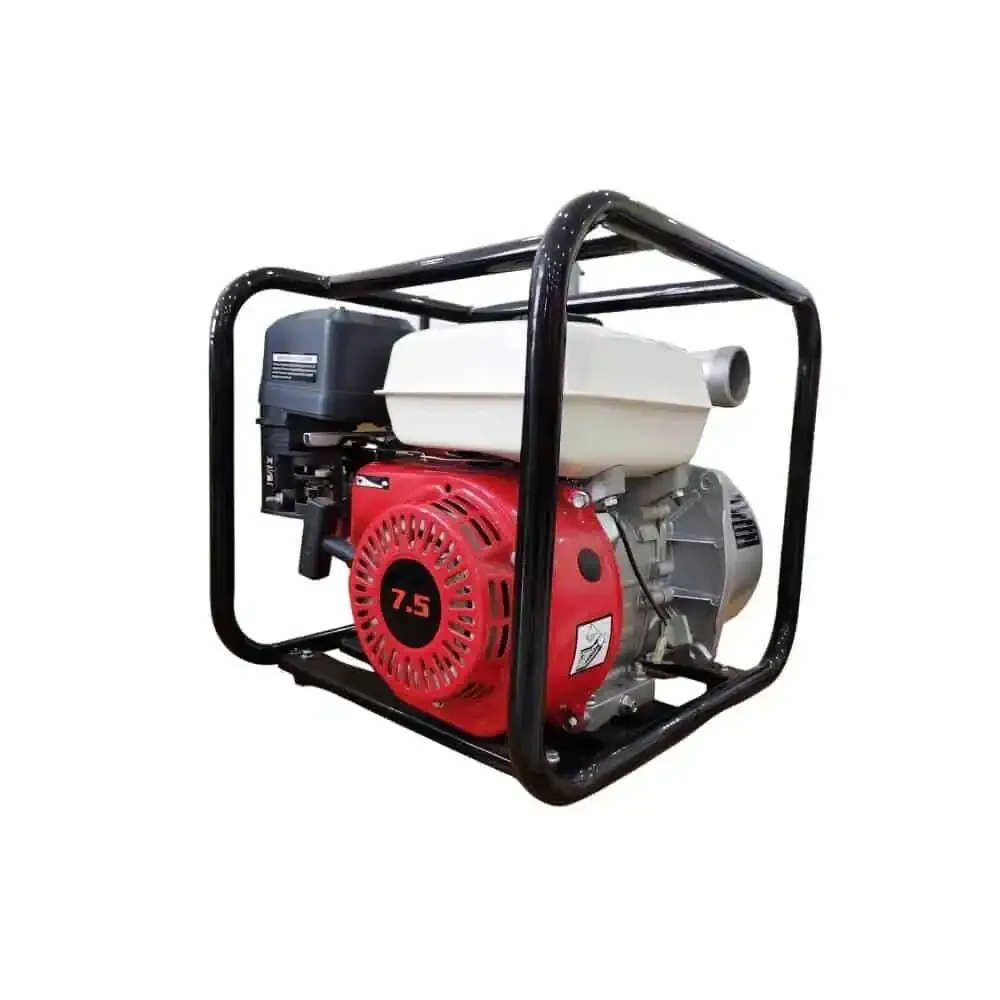

| Model | HTQGZ50-30 | ||
|---|---|---|---|
| pump | Type | Self priming | |
| Diameter of in pipe(mm/in) | 50/2.0 | ||
| Diameter of out pipe(mm/in) | 50/2.0 | ||
| Lift(m) | 30 | ||
| Suction(m) | 7 | ||
| Volume of flow(m³/h) | 30 | ||
| N.W/G.W(kg) | 23/25 | ||
| Dimension(mm) | 510*420*430 | ||
| Engine | Engine Model | 170FB,6.5HP | |
| Engine Type | Single cylinder, 4-stroke, air-cooled, gasoline | ||
| Displacement(ml) | 210 | ||
| Bore x stroke(mm) | 70x54 | ||
| Rated Power(hp/rpm) | 6.5hp(3600) | ||
| Fuel Tank Capacity(l) | 3.6 | ||
| Fuel consumption(l/h) | 《0.8 | ||
| Others | Certificate | CE, ISO | |
| Packing | carton box | ||
| Qty:20'GP/40’ HQ(sets) | 295/750 | ||
