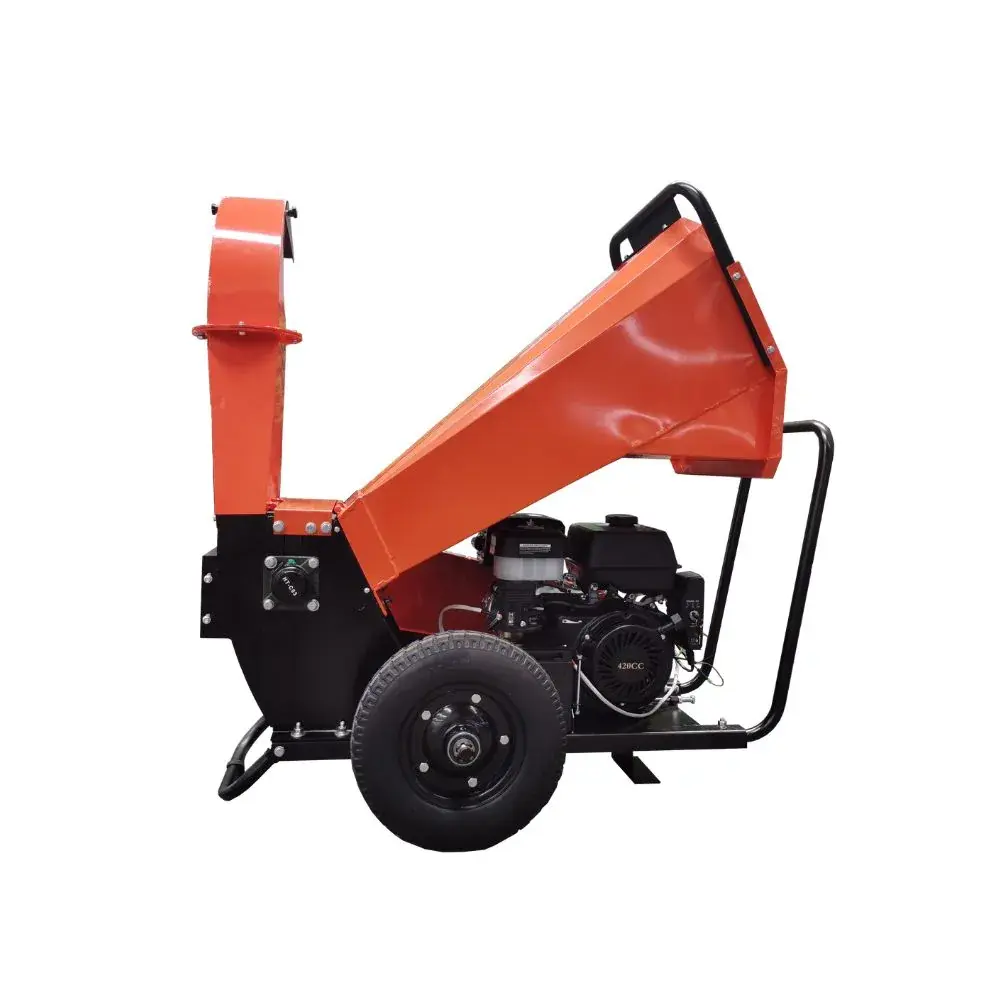

| Model | HT-C03 | ||
|---|---|---|---|
| wooden chipper | Max. diameter branches | 10cm | |
| Input height | 100cm | ||
| Input mouth size | 50*40cm | ||
| Output height | 1570mm | ||
| Emergency button | W | ||
| Wheel diameter | 40cm | ||
| Wheel | 4.00-8 solid tyre | ||
| Blade pcs | 2move+1fix | ||
| Dim（LxWxH） | 1350*800*1440mm | ||
| G.W. | 190KGS | ||
| Engine | Engine Model | 190F,13HP | |
| Engine Type | Single cylinder, 4-stroke, air-cooled,gasoline |
||
| Displacement(ML) | 420 | ||
| Bore x stroke(mm) | 90*60 | ||
| Rated Power(hp/rpm) | 13hp(3600) | ||
| Fuel | 92# petrol | ||
| Fuel Tank Capacity(L) | 6.5 | ||
| Fuel consumption(L/h) | 《0.8 | ||
| Starting | electric | ||
| Packing | Package material | wooden box | |
